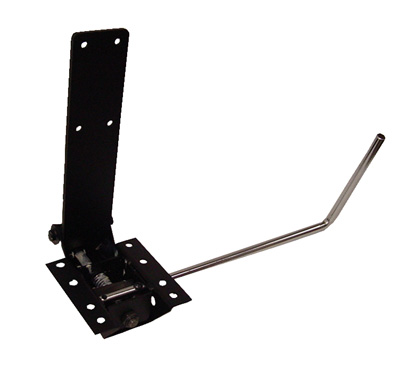

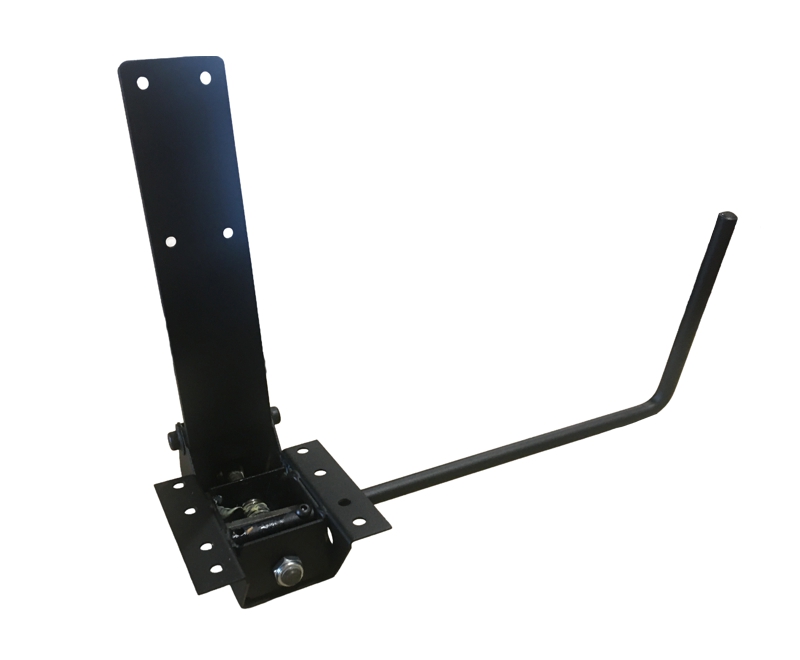

Equipment Part: Back
Mechanism for
All-Purpose Chairs*
Standard Back Mechanism
* Fits all Collins All Purpose Chairs and Shampoo Chairs
Description:
This part is fasten to the bottom of the chair by 4 bolts
and the back is attached by 4 bolts. When the chrome arm is pushed
forward it allows the back to lay back for shampooing. Earlier
models
were all chrome today they only come with the bottom and back
portion painted black and only the arm is chrome.
*
May FIT other brand chairs.
* Any Question call 800-643-0333
|
|
Back Mechanism for
All-Purpose Chairs
$ 109.99
|
|
*************************************************
|
EQUIPMENT PART: SPRING BACK MECHANISM
for SHAMPOO CHAIRS
* Spring Back Mechanism
* Fits all Collins Shampoo Chairs and Other Brands of Shampoo Chairs
* Description:
This part is fasten to the bottom of the chair by 4 bolts
and the back is attached by 4 bolts (some times attached to the outside of the back sometimes under the upholster back). When the client pushes backward or lays back it automatically allows the back to lay back for shampooing. Earlier models were all chrome, today they only come painted BLACK.
*
May FIT other brand chairs.
* Any Question call 800-643-0333 |
Back Mechanism for
Shampoo Chairs $ 92.50 |
|
*************************************************
|
EQUIPMENT PART: ***SPRING ONLY*** for SPRING BACK MECHANISM
SPRING ONLY
* for Spring Back Mechanism
* Fits all Collins Shampoo Chairs & other brands of shampoo chairs
* Material: 1/8" Dia. Spring Rod Steel
* Size: 12 Coils, 1-1/8" Diameter x 4-1/2" Long
* For questions, call 800-643-0333. |
EQUIPMENT PART: ***SPRING ONLY*** for SPRING BACK MECHANISM $ 28.00 |
|
************************************************
 |
23" Hydraulic Base Ring *
Black Rubber This protective outer ring helps to protect the floor from the metal edge of the hydraulic baseplate. Also helps to keep chair from sliding around.
* Material: Rubber
* Color: BLACK
* Fits Collins and Kaemark brand 23" Standard Hydraulic base
* May fit other 23" Diameter bases
* Rubber length 72.25" |
|
23" Hydraulic Base Ring * Black
Rubber
$ 28.99
|
|
*************************************************
|
Salon Chair 4-1/2" O.D. Standard Hydraulic base Pump REPAIR KIT * Fits: COLLINS, Kaemark & Others
* Fits Collins and Kaemark brand Standard Hydraulic base
* May fit others
* This Repair Kit is for U.S.A. made hydraulic pump Only !
*** 4-1/2" O.D. Standard Hydraulic Pump Repair Kit
This KIT consists of the following parts:
* Two O-Ring for spacer tube - part # HLP-5530
* One Top Seal for 5/8" pin - part # HLP-4032
* One U-cup - part # HLP-5509
* One Quad Ring - part # HLP-5512
* One O-Ring for socket tube (top) - part # HLP-5554
* One O-Ring for bottom of socket tube (has a yellow dot on it) - part # HLP-5587
Pump Repair Info and Schematics
|
Salon Chair 4-1/2" O.D. Standard Hydraulic base Pump REPAIR KIT * $ 24.00
*** THIS ITEM IS NON-RETURNABLE ***
|
|
*************************************************
 |

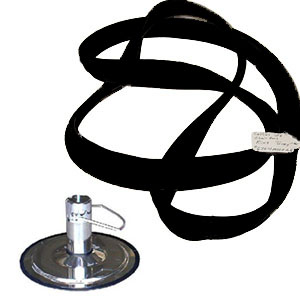

26" Hydraulic Base Ring *
Black Rubber
This protective outer ring helps to protect the floor from the metal edge of the hydraulic baseplate. Also helps to keep chair from sliding around.
* Material: Rubber
* Color: BLACK
* Fits Collins and Kaemark brand Heavy Duty Hydraulic base
* Fits Collins Barber chair pumps for Model # 9093, 9092, 9090, 9070, 9060, 9050, 9030, 9020, 9010, 9000, 9400, 8060, 8060s, 7900, 7910,
* May fit other 26" Diameter bases
* Rubber length 85.5"
To better determine if this part fits your chair look for the Chair Model number printed on the "White Tag" stapled to the bottom of your chair seat.
Any Question call 800-643-0333 with Make & Model # printed on the white tag.
|
|
26" Hydraulic Base Ring *
Black
Rubber
$ 32.99
|
|
*************************************************
|
Salon Chair 5-1/2" O.D. Heavy Duty Hydraulic base Pump REPAIR KIT * Fits: COLLINS, Kaemark & Others
* Fits Collins and Kaemark brand Heavy Duty Hydraulic base
Click Here to See Heavy Duty Base
* May fit others
* This Repair Kit is for U.S.A. made hydraulic pump Only !
*** 5-1/2" O.D. Hydraulic Pump Repair Kit
This KIT consists of the following parts:
* Two O-Ring for spacer tube - part # HLP-5530
* One Top Seal for 5/8" pin - part # HLP-4032
* One U-cup - part # HLP-5509
* One Quad Ring - part # HLP-5512
* One O-Ring for socket tube (top) - part # HLP-5554
* One O-Ring for bottom of socket tube (has a yellow dot on it) - part # HLP-5587
|
Salon Chair 5-1/2'' O.D. Heavy Duty Hydraulic Pump REPAIR KIT $ 24.00
*** THIS ITEM IS NON-RETURNABLE ***
|
|
*************************************************
|
Hydraulic Pump Lock Assembly for 4-1/2" Pump
* Thick Steel Part *
This is the Part That Locks the Shaft * Not Allowing the Shaft to Turn
* A Large Thick Steel Part in a Horse Shoe Shape with holes in the ends allowing a bolt to go thru one side and threaded into the other side
Once installed and Adjusted when you raise the foot pump it will raise
the arm attached to this part Squezzing the part tight against the pump shaft so the shaft can not turn.
* Adjustment is need to get the part to the proper thigtness so it will
be loose when not need and tight enough to lock the shaft to keep it from turning.
* for 4-1/2" O.D. Pump
** Why this part needs to be replaced: Once the part has been tighten
to the tightes posistion then it will not loosen up which will make it hard to pump up the pump and Especialy Not allowing the pump to be lowered.
* Fits Collins and Kaemark brand Heavy Duty Hydraulic base
* May fit others
*** Fits ONLY 4-1/2" O.D. Hydraulic Pump
Please allow 1 - 2 weeks to ship |
Hydraulic Pump Lock Assembly for 4-1/2" Salon Chair Pump * Thick Steel Part * $ 30.85 |
|
*************************************************
|
Hydraulic Pump Yoke * for 4" Pumps * Fits: COLLINS, Kaemark & Other Salon Chair Pumps * Pump is also use on Dog Grooming Tables
Hydraulic Pump "YOKE" for 4" Pumps
* a 3/8" - "U" Shape Steel Bar
* Dimension : 3-5/8" Wide x 3" Long
* a slight bent in the center of Each of the 3" Long Legs
* Has halve a hole drilled, 3/8" from the end of each leg, these holes are recipcals for the allen screws that go thru the Pedal Rod to hold the Yoke in place.
* for smaller Pumps
* Pump is Also use on Dog Grooming Tables
* In Stock Ready to Ship
* Fits ONLY U.S. made hydraulic pumps
Pump Repair Info and Schematics |
Hydraulic Pump Yoke * for 4" Pumps $ 18.50 |
|
**************************************************
|
Hydraulic Pump Lock Assembly for 5-1/2" Salon Chair Pump
* Thick Steel Part *
This is the Part That Locks the Shaft * Not Allowing the Shaft to Turn
* A Large Thick Steel Part in a Horse Shoe Shape with holes in the ends allowing a bolt to go thru one site and threaded into the other side
Once installed and Adjusted when you raise the foot pump it will raise
the arm attached to this part Squezzing the part tight against the pump shaft so the shaft can not turn.
* Adjustment is need to get the part to the proper thigtness so it will
be loose when not need and tight enough to lock the shaft to keep it from turning.
** Why this part needs to be replaced: Once the part has been tightend
to the tightest posistion then it will not loosen up which will make it hard to pump up the pump and Especialy Not allowing the pump to be lowered.
* Fits Collins and Kaemark brand Heavy Duty Hydraulic base
* May fit others
*** Fits ONLY 5-1/2" O.D. Hydraulic Pump
Please allow 1 - 2 weeks to ship |
Hydraulic Pump Lock Assembly for 5-1/2" Salon Chair Pump * Thick Steel Part * $ 30.85 |
|
*************************************************
|
Salon Chair Part: Hydraulic Pump "YOKE" for 5-1/2" O.D. Pumps
Hydraulic Pump "YOKE" for 5-1/2" O.D. Pumps
* a 1/2" - "U" Shape Steel Bar
* Dimension : 4" Wide x 4" Long
* Has halve a hole drilled, 7/16" from the end of each leg, these holes are recipcals for the allen screws that go thru the Pedal Rod to hold the Yoke in place.
* for Large Pumps
* Pump is Also use on Dog Grooming Tables
* Please allow 1 - 2 weeks to ship
* Fits ONLY U.S. made hydraulic pumps
Pump Repair Info and Schematics |
Salon Chair Part: Hydraulic Pump "YOKE" for 5-1/2" O.D. Pumps $ 18.50 |
|
|
Salon Chair Part: Hydraulic Pump Plunger SPRING Long
* Hydraulic Pump Plunger SPRING Long
* 1-1/2" Dia. Coil Spring x 5" Long
* Material: 1/8" Dia. Steel rod in spring coil
* This PART consists of the PLUNGER SPRING ONLY
* Fits Salon Chair 4", 4-1/2" and 5-1/2" O.D. Hydraulic Pump
* Fits Collins, Kaemark and Many other brands Heavy Duty Hydraulic Pumps
* FITS: U.S. Made Hydraulic Pump ONLY
This PART consists of the PLUNGER SPRING ONLY
Pump Repair Info and Schematics |
Salon Chair Part: Hydraulic Pump Plunger SPRING Long $ 21.50 |
|
*************************************************
 |

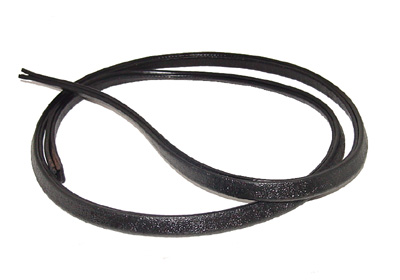

72" Universal Base Ring *
Black Rubber
*
72" Long
* Color: Black
* Cut to Length Need
* Black Rubber
Material that has metal clip inside to hold on to base
|
|
72" Universal Base Ring * Black
Rubber
$ 28.99
|
|
*************************************************
|
"Part fits like Collins Shampoo Chair pictured" |
Collins Part: TORQUE TUBE for the Kick Out Legrest on QSE #1850L Shampoo Chair
* Collins Part: TORQUE TUBE for the Kick Out Legrest on QSE #1850L Shampoo Chair
* This is the part that RAISE, LOWERS and LOCKS-in-PLACE the Legrest
* Fits: Collins #1850L QSE Shampoo Chair, Also Fits #1550L, #9850L, #50-60, #18.ES, #67.ES, #98.ES, #8282 and Others
* Dimension: 1/2" Tall x 1/2" Wide x 22" Long
* 1/2" x 1/2" Square Steel Tubing
* Has 6 holes on one end and 3 holes on the other end
* Material: Metal
* Color: Black
*** PART ONLY ***
Also Fits Collins Dryer Chairs with Kick Out Legrest: model # 2750D |
Collins Part: TORQUE TUBE for the Kick Out Legrest $ 41.25 |
|
*************************************************
 |

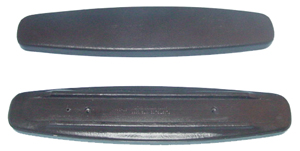

Chair Arm Plastic *Round
Plastic Salon Chair Arm
* Fits 1" Round Tubing
* Overall Dimension: 1-7/8" wide x 12" long x 1" Tall
* Distance between Bolt Holes 5-3/4" center to center
* Back Bolt Hole is 2" center from end of handle
* Front of Handle is sealed off, Back of Handle is open
* Front Bolt Hole is 4-1/4" center from front of handle
* Color: BLACK
* Fits many Shampoo chairs and Styling Chairs
* # 911-S24
* One (1) ONLY
*** Note Option: If the holes in the tubing do Not measuer the same as above you may need to drill a hole in the tubing to match up with nut in handle. (ONLY about 1 in 10 will need to do this.)
|
| Chair Arm Plastic *Round $ 11.00 |
|
*************************************************
 |

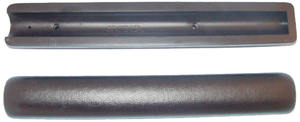

Chair Arm Plastic *Square
Plastic Salon Chair Arm
* Fits 1" Square Tubing
* Overall Dimension: 2-3/8" wide x 11-1/2" long x 7/8" Tall
* Distance between Bolt Holes 5" center to center
* Both Bolt Holes are 3-3/16" from end of handle
* Color: BLACK
* Fits many Shampoo chairs and Styling Chairs
* # 911-S44
* One (1) ONLY
*** Note Option: If the holes in the tubing do Not measuer the same as above you may need to drill a hole in the tubing to match up with nut in handle. (ONLY about 1 in 10 will need to do this.)
|
| Chair Arm Plastic *Square |
"Not Available At Present Time"
|
BELVEDERE BEAUTY AND BARBER SALON CHAIR PARTS
|

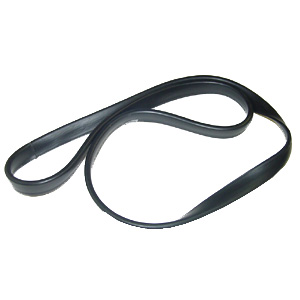

Belvedere Base Ring for 23" Hydraulic Chairs
Base ring kit for (23 inch) Hydraulic Bases
* Fits: Belvedere Hydraulic Bases # CB, 50, and 2EC series bases.
* Color: BLACK
** This is the MOST COMMON base ring for Belvedere hydraulic base chairs
|
Belvedere Base Ring for 23" Hydraulic Chairs $ 29.99 |
|
*************************************************
|

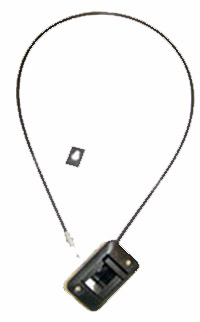

Belvedere Remote Control Complete CABLE with Lever
Belvedere Remote Control Complete * CABLE for Back Mechanism for Reclining Back Chairs
* Description: 34" long Cable with Black Plastic Finger Lever and Cable Clip.
* In stalls in most Belvedere Reclining Back Chairs ( All-Purpose & Shampoo Chairs )
* Attaches to 7/8" round cylinder 11" long: Item # 20013484(shown below), Not Included
***** DOES NOT FIT BELOW CHAIR *******
For LTD All-Purpose Chairs
Fits: Model #631D, Around Production #91667, around year 1983 |
Belvedere Remote Control Complete CABLE with Lever $ 44.00 |
|
*************************************************
|
Belvedere Back Mechanism for All-Purpose Chairs
Belvedere Back Mechanism for All-Purpose and Shampoo Chairs
7/8" round cylinder 11" long looks like it fastens on with a hole in shaft
on the top and a hole in the metal part on bottom.
It has below printed on label on the part.
P.L.PORTER Mechlok
Part No. MM65 - 1045 LOT RP1307756
REV. LETTER (F)
warranty / Exp. ??/???? (Like 12/2008)
***** May Also Need Control Remote Complete ( Cable with Finger Release) Item # 20010657 (shown above)
***** DOES NOT FIT BELOW CHAIR *******
For LTD All-Purpose Chairs
Fits: Model #631D, Around Production #91667, around year 1983
Does this part fit My Chair ???
read below and examine your chair to see if this part will fit your chair
Only if the release lever is in the back of the chair.
If the release lever is on the side of the chair then this will not work nor do we have any repair parts for one that old. |
Belvedere Back Mechanism for All-Purpose Chairs $ 110.50 |
|
*************************************************
|
Belvedere Glide for #RV14 Shampoo Chairs
* The feet part of the 5 star shape leg base of the chair
* 5 ONLY Glides enough for 1 chair
* Please allow 1 - 2 weeks to ship
* Special Order
* Final Sale ! |
Belvedere Glide for #RV14 Shampoo Chair $ 13.50 |
|
*************************************************
Parts for Collins Professional Barber Chairs
Look for Manufactures White Tag attached to bottom of chair it will have Manufacture's Name and Model number of chair.
These Parts Will Only fit
Collins brand Chairs
Must have Manufacture's Model Number and Date produced to Order these Parts
Put info in commit box upon check out.
|
Collins Gas Cylinder for Barber Chair *Replacement
Gas Cylinder
Look for Manufactures White Tag attached to bottom of chair it will have Manufacture's Name and Model number of chair.
These Parts Will Only fit Collins brand Chairs
Must have Manufacture's Model Number and Date produced to Order this Part. Put info in commit box upon check out.
* Replacement Part
* SPECIFY CHAIR MODEL
**** This Part is NON RETURNABLE ***
*** FINAL SALE ***
QUESTIONS before buying call 800-643-0333 |
Collins Gas Cylinder for Barber Chair *Replacement $ 98.00 |
|
*************************************************
|
|
Finger Pull
Finger Pull is the release lever on the side of the seat back. A small black plastic piece recessed into the seat. One Finger Pull Only !
Look for Manufactures White Tag attached to bottom of chair it will have Manufacture's Name and Model number of chair.
These Parts Will Only fit Collins brand Chairs
Must have Manufacture's Model Number and Date produced to Order this Part. Put info in commit box upon check out.
* Replacement Part
* SPECIFY CHAIR MODEL
**** This Part is NON RETURNABLE ***
*** FINAL SALE ***
QUESTIONS before buying call 800-643-0333 |
*************************************************
|
|
Complete Cable Assembly
Includes Cable, connectors and Two Finger Pulls
Look for Manufactures White Tag attached to bottom of chair it will have Manufacture's Name and Model number of chair.
These Parts Will Only fit Collins brand Chairs
Must have Manufacture's Model Number and Date produced to Order this Part. Put info in commit box upon check out.
* Replacement Part
* SPECIFY CHAIR MODEL
**** This Part is NON RETURNABLE ***
*** FINAL SALE ***
QUESTIONS before buying call 800-643-0333 |
Complete Cable Assembly $ 163.00 |
|
*************************************************
|
|
Converts "Lock Leaf" Collins Barber Chairs to "Bloc-o-Lift" System
Every thing to convert the old Barber chair to the New Lift System
Look for Manufactures White Tag attached to bottom of chair it will have Manufacture's Name and Model number of chair.
These Parts Will Only fit Collins brand Chairs
Must have Manufacture's Model Number and Date produced to Order this Part. Put info in commit box upon check out.
* Replacement Part
* SPECIFY CHAIR MODEL
**** This Part is NON RETURNABLE ***
*** FINAL SALE ***
QUESTIONS before buying call 800-643-0333 |
| Converts "Lock Leaf" Collins Barber Chairs to "Bloc-o-Lift" System $ 290.00 |
|
*************************************************
CacheBeauty.com is the source for the finest
in beauty salon
equipment!
Other items of interest: index
of products
CacheBeauty.com
