    Parts: Belvedere 622c Fixture



Notice to Plumbers:

* Maximum Thickness of Bowl Opening: 7/16" (maybe up to 15/32")
* Fixture Opening in Bowl must be a Minimum of 1-5/32" Diameter and a Maximum of 1-1/2" Diameter to accommodate this fixture.

622c Fixture

by Belvedere

* Crystal Clear Plastic Handle that has a "Tear Drop" shape when you look down at it.
* ON: pull up
* OFF: push down
* TWIST: for hot / cold mixture
* The Hot & Cold inlets are standard male 1/2" (NPT) fittings
* The standard 1/4 Spray Hose Nipple allows access to change the hose out without removing the fixture.
* The fixture has a threaded neck area (approximately 9/16" long) and 1-1/8" diameter
* Maximum Thickness of Bowl Opening: 7/16" (maybe up to 15/32")
* Fixture Opening in Bowl must be a Minimum of 1-5/32" Diameter and a Maximum of 1-1/2" Diameter to accommodate this fixture.

Can be used also to replace the #112 two handle fixture that came with Belvedere Shampoo Bowls for years prior to 1990. The # 112 fixture is discontinued.
** Note you will need the Belvedere Flo Temp Caps * Black (item #444450901027) to cover the other two holes in the bowl that was also use by the 112 Two Handle Fixture. Traditionally the New 622C fixture is placed in the far right hole and the cover caps are use to cover the other 2 holes.

** NOTE:
MOST of the TIME this is the ONLY Single Handle Fixture that will fit the OLDER BELVEDERE Bowls because of the Un-uniform Thickness of the Porcelain Finish on the bowl. This fixture has a long enough threaded neck area (approximately 9/16") that will allow the fixture body to go thru the bowl opening and allow the Chrome escutcheon ring to thread 1/4" onto the fixtures body to hold the fixture onto the bowl.



Exploded View

# 622c Belvedere Fixture  $ 194.97

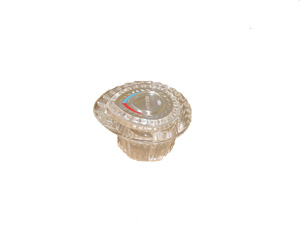

Handle for Belvedere #622c Single Lever Fixture

 * Handle Only *

* Replacement Handle for Belvedere # 622TC Single Handle Fixture
* Crystal Clear Plastic Handle
* "Tear Drop Shape" when looking down from top
* Includes: Handle Cover, Handle Screw, Handle Washer and Handle


 Handle for Belveder #622c Single Lever Fixture * Handle Only   $ 46.99
