Notice to Plumbers:

The OD diameter of the treads at the point that this fixture goes through the shampoo bowl is 1-1/8 inch

by Belvedere

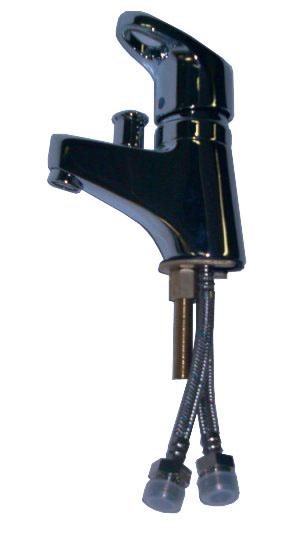

Can be used also to replace the #112 two handle fixture that came with Belvedere Shampoo Bowls for years prior to 1990.

The # 112 fixture is discontinued but we have most parts available as seen below.

Exploded View

* Covers 2 of the 3 Holes in the cast iron porcelain enamel Shampoo Bowl when using a single handle #622c fixture (fixture Not Included)
* CONTAINS: Two (2) - Black Plastic Caps and installation instructions
* General Directions: Press Caps into the holes, Complete installation instructions included.

*** Replaces Chrome Plastic Flo-Temp COVER PLATE(below), No Longer Made

Flo-Temp Cover Plate

by Belvedere

Use with #622c Fixture (sold above)

See Flo Temp Caps Above

by Belvedere

The only replacement part for the 622c Fixture

comes with clip as shown

Dimensions: Length with  Stem Up 4-3/16"

Length with Stem Down 3-7/8

Click for Instructions

 Note:
This cartridge will Not fit the old 622 fixture that would have been used before 1985 * this cartridge is bigger in Dia. and Longer. That Cartridge is no longer available.

by Belvedere

522 Cartridge

by Belvedere

The only replacement part for the 522 Fixture

by Belvedere

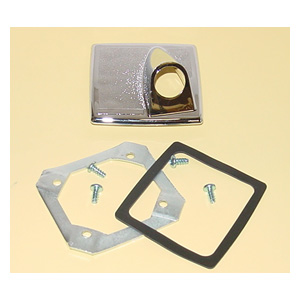

* Plain Shampoo Hose Receiver * NOT for Vacuum Breaker
* Fits Belvedere Shampoo Bowls
* Complete with Clamp (Steel square and 4 screws) and Gasket
* Chrome (Plastic)
* Dimension of Receiver 2-7/8" x 2-5/8"

by Belvedere

Service Part Kit  < Click Here

by Belvedere

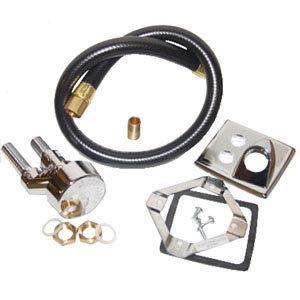

# 403

Fits Only Belvedere Bowls

This is a one way valve that saves the integrity of the fresh water system by NOT allowing contaminate water (water contaminated with perm solution, neutralizer, hair color, etc.) from mixing with the fresh water system that we drink.

Consult your local plumber and building codes for need of this product.

Click HERE for Detailed Instructions on Set-Up of Vacuum Breaker

by Belvedere

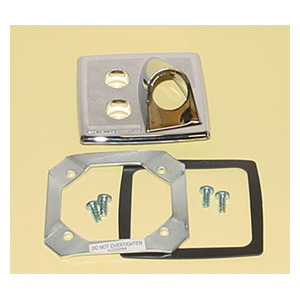

* Fits Belvedere Shampoo Bowls
* Vacuum Breaker Shampoo Hose Receiver
* Has 2 - 1/2" holes to the Left of the Hose Opening to accommodate
Belvedere Vacuum Breaker
* Complete with Clamp (Steel square and 4 screws) and Gasket
* Chrome (Plastic)
* Dimension of Receiver 2-7/8" x 2-5/8"

by Belvedere

This is the HOSE that connects the Vacuum Breaker to the Fixture
The length is about 24" long with female couplings on each end
The hose is 3/8" inside diameter (ID) 250 PSI made in USA by Goodyear

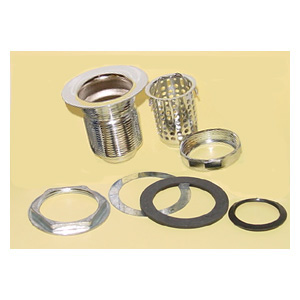

For Old Cast Iron Shampoo Bowl

* 1-1/2" Complete Strainer Assembly for Old Cast Iron Porcelain Shampoo Bowl
* Includes Brass Body Stainless Steel Strainer Cup
* Less Tailpiece

Fits most Belvedere Bowls
(#3800, 3100, 8000, 8100, 8200, 9000, & 1980W)
&
Marble Products Fiber Glass Bowls #10 and #30

Bracket has 2 slots to accommodate 2-tongues on Back of Bowl that is Parallel to Wall.  Tongues are 9" Center

Package contains: Metal Bracket and 1-Camber Bolt
usually mounted with 4 wood screws ( not included )

Note: #3100 bowl needs shorter leveling bolt which is not included, but may be
purchased at a local store.


Shampoo Bowl Part: Flex Drain Hose

* Flexible Tail-Stock
* 1-1/2" Dia. FLEX DRAIN HOSE Only
* Includes: 2 Drain Tube Washers & 2 Drain Tube Slip Nuts
* Fits Tilting Bows: Collins CB21 ABS Plastic Bowl, Collins P-0546 Porcelain Bowl, Kaemark #903 Porcelain Bowl, Savvy Porcelain Tilt Bowl, Belvedere Pivoting Porcelain enamel cast iron Bowl #8600 & Pibbs Tilting Porcelain Sink

by Belvedere

* Fits Belvedere Bowls #2100
&

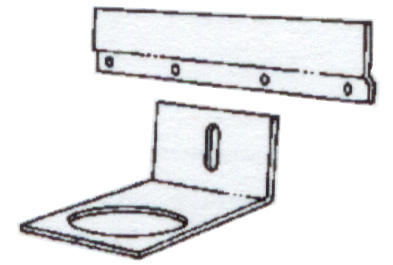

Fits 2800 (Acrylic/ABS Plastic Bowls)
* Package contains: Upper Metal Bracket and Lower Metal Bracket
* Upper Bracket Measures 3" Tall X 14" wide X 1/8" Thick
* Upper Bracket Mounts to wall with 4 wood screws ( not included )
* Lower Bracket Measures 4-1/2" wide X 1/8" Thick X 11-7/8" Long Front with 4" Dia. Opening to accommodate Strainer Assembly X 5-5/8" Tall Back with 5/16" wide X 1-1/2" long Slotted Hole (beginning 3-3/8"from bottom) to mount bracket to wall
*** Both UPPER & LOWER Brackets are Black Painted Steel


by Belvedere

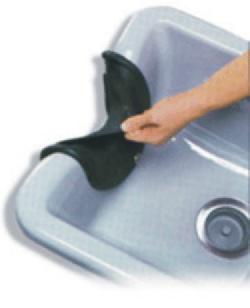

Large thick rubber cushions the neck.

by Belvedere

See Parts Schematic Here

by Belvedere

Fits:  Belvedere #9501A Avant Garde Plus Dryer, B900 Mega and
B700 Real Hot Dryers

* These Dryers get Hotter (UL/CUL Listed. 120 Volts, 10 Amps., 1030 Watts)
* Spring Coil Heating Element on Orange Board
* Thermal Limiter Included

See Parts Schematic Here

by Belvedere

Fits:

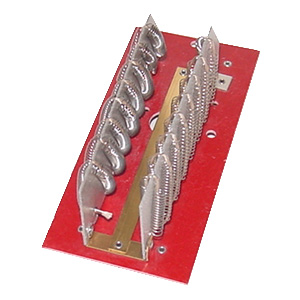

 Fits: Belvedere Dryer Models # B810, B870, 9500 and 9500A

* (UL/CUL Listed. 120 Volts, 8.3 Amps., 930 Watts)
* Spring Coil Heating Element on Red Board
* Thermal Limiter PURCHASED SEPARATELY

by Belvedere

* THIS PART ATTACHES TO THE HEATER ASSEMBLY

* Thermal Limiter ( keeps dryer for over heating)

Fits: Belvedere Dryer Model # B810, B700 Real Hot, B900 Mega,
9500A, 9501A, 9507B

See Parts Schematic Here

by Belvedere

Fits: Belvedere Dryer Model # B810, B870 First Lady, B700 Real Hot, B900 Mega, 9500A, 9501A, 9507B

* See Below for Moel # B810 & B870


See Parts Schematic Here

by Belvedere

* Fits: Belvedere Dryer Models # B810 & B870
* This Replaces the original timer for Old Model # B810 & B870.
* Conversion Kit includes:
* Timer, One - 23" long 18 AWG Red Wire with wire clip on each end, One - 23" long 18 AWG White Wire with wire clip on each end and a 4.5" pigtail wire on one end with wire clip on it, Two - 23" long 18 AWG Black Wire with wire clip on each end and a 4.5" pigtail wire on one end with wire clip on it, Timer Knob, wire nuts and instructions.



by Belvedere

Fits: Belvedere Dryer Model # B810, B870 First Lady, B700 Real Hot, B900 Mega, 9500A, 9501A, 9507B

See Parts Schematic Here

----------- 2 ½" long ------------

by Belvedere

Fits:
Naturelle Dryer Avant Garde, Belvedere 810 and some old Helen Curtis Dryers and Zotos Dryers

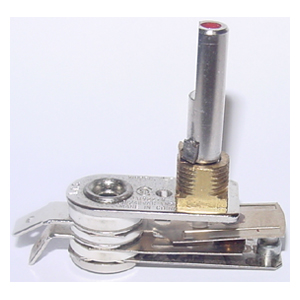

aka: Non Adjustable Thermostat

( this is the short version )

Below Stamped on part
BIMET 15OF 89J HT480

by Belvedere

Belvedere Dryer Model # 810, 9500A & 9507B

* Flat Top
* Base 1-3/4" Diameter
* 1" Height


by Belvedere

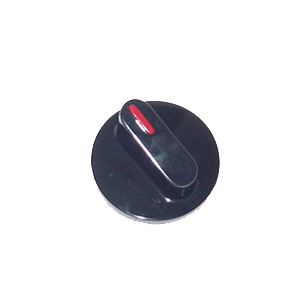

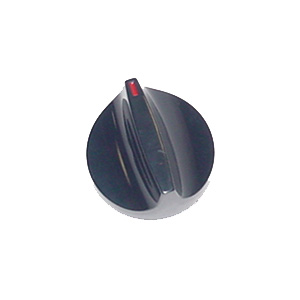

Fits: Belvedere #B810, B700 Real Hot, B900 Mega, & B900B

* Round Knob with Flat Slopped Top
* Base 1-3/4" Diameter
* 1" Height


See Parts Schematic Here

by Belvedere

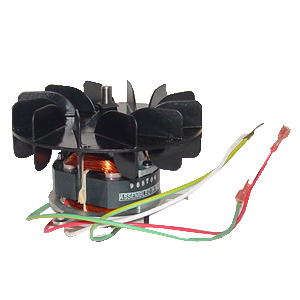

"D" Shape Shaft (the shaft has one side flat)
when looking on the end of the shaft or the end of the impeller (fan blade) there is a "D" Shape


Fits:
Belvedere Dryer Model #B700, B810, B900B, 9500A & 9507B


See Parts Schematic Here

by Belvedere

See Parts Schematic Here

by Belvedere

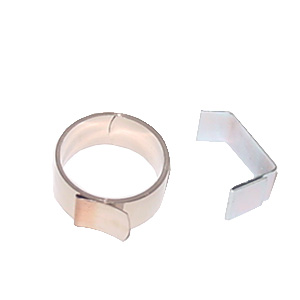

* Clip for "D" Shaped Impeller
For Belvedere dryers

See Parts Schematic Here

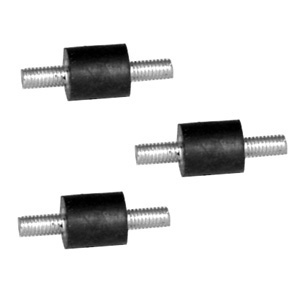

DRYER PART: MOTOR Shock Mounts * BELVEDERE DRYERS

Three (3) Motor Shock Mounts
* Black Rubber with independent bolts sticking out each end
* Allows the motor to move without shaking the housing
* Black Rubber is 7/16" Dia. x 1/2" Long
* Bolts protrude out 3/8" long
* Overall Length of Shock is 1-1/4"

Fits:
Belvedere Dryer Model # B700, B810, B900B, 9500A & 9507B

See Parts Schematic Here

by Belvedere

Fits: Belvedere Dryer Model #B700, B810, B900B, 9500A, 9507B
* This is the Main Housing the Dryer Motor fits into.
* Located in the Bottom of the dryer cabinet.
* Color: Black
* Material: Plastic


See Parts Schematic Here

Dryer Part: MOTOR Housing Cover * Belvedere Dryers

This is the Motor Housing Cover to enclose the Dryer Motor and Blower Wheel into the blower housing
* Description: Metal Plate with opening in center (4-9/16" Dia.) and 6 bolt holes around edge
* Located in the Bottom of the dryer cabinet
* Dimension: 8-1/2" wide x 7-5/8" Tall x 1/8" Deep (including offset)
* Color: light gray
* Material: Metal

Fits: Belvedere Dryer Model # B700, B810, B900B, 9500A, 9507B

See Parts Schematic Here

by Belvedere

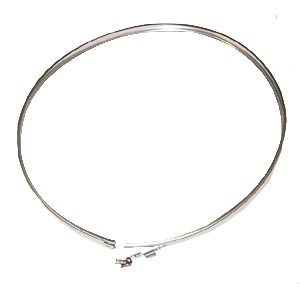

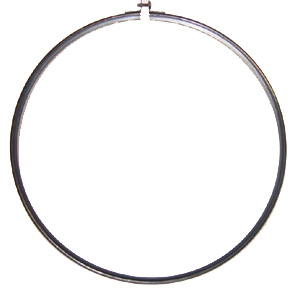

* This the Band that Holds the Inner and Outer Hood together
* Fits Belvedere (Advant Garde) before 2001, Central Beauty Equipment, Zotos, Helen Curtis and some Brentwood Dryers
* All These Dryers are OLDER Salon Dryers made before 2001
* Measures 41.5" to 42" Long
* Best way to be sure this Fits Your Dryer Hood is to Measure the
Distance around the Outer Rim of the inner or outer Dryer Hood
This Measurement should be between 41.5" to 42.5"
* This Replacement is Black Plastic with spring clip fastner

by Belvedere

For NEWER Model # 9500A Belvedere Avant Garde Dryer
And Model # B700 Real Hot Dryer And Model # B810 Dryer

* Color: BLACK
* Material: METAL
* 42-1/4" Long
* Screw Fastener

by Belvedere

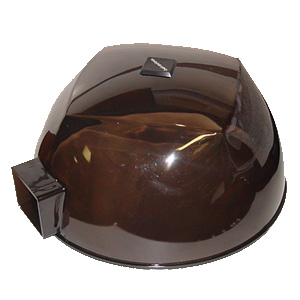

For NEWER Model # 9500A Belvedere Avant Garde Dryer
And Model # B700 Real Hot Dryer And Model # B810 Dryer

* Color: BLACK
* Material: PLASTIC
* 42-1/4" Long Rim
* Rim Fastener: Screw

Note:  Hood NO LONGER comes in Smoke color * Black Only

THIS HOOD IS NO LONGER MADE AND OUT OF STOCK for replacement parts purchase 1 of each of the following:
* Outer Hood
* Inner Hood
* Hood Band
* or Complete Assembly with Neck

by Belvedere

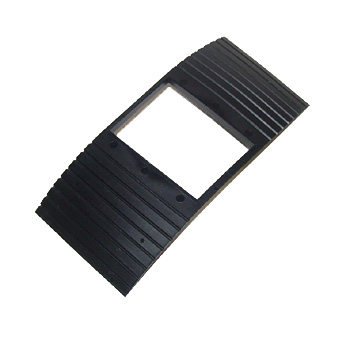

* This is the Plastic part that fits between the Dryer cabinet and the Stack that allows the stack to move back and forth

* Fits: Belvedere Dryer Model # B810, # B870 First Lady, B700 Real Hot, B900 Mega, 9500A Avant Garde, 9501A Avant Garde Plus Salon Dryers
* Also Fits Old Helen Curtis, Naturelle and Zotos Salon Dryers

* Overall Dimensions: 3-7/8" x 9"
* Stack Opening: 3-3/8" x 2-1/2"
* Black Plastic

Installing Slide Collar Instructions

See Parts Schematic Here

by Belvedere

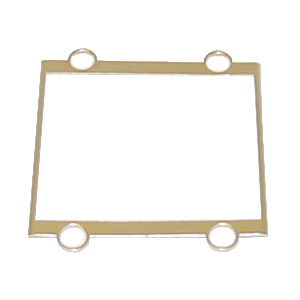

* This is the metal bracket that keeps the black plastic slide collar is place around the dryer stack.
* Fits: Belvedere Dryer Model # B810, # B870 First Lady, B700 Real Hot, B900 Mega, 9500A Avant Garade, 9501A Avant Garde Plus Dryer

Installing Slide Collar Instructions

See Parts Schematic Here

by Belvedere

* This the part that slides up and down and connects to the Outer Hood
* Fits Belvedere, Avante Garde # B810, Avante Garde Pluse Dryer Model # 9501A, #9500A and Mega Dryer Model # B900

See Parts Schematic Here

by Belvedere

* This Split Pin Attaches the Inner Stack to the Blower Housing
* Material: Metal
* Color: Chrome
* After Pin is inserted through inner stack and blower housing the End is spread apart to hold pin in place

See Parts Schematic Here

by Belvedere

DRYER PART: Complete Hood Assembly for Belvedere dryers
* Color: Black
* Material: Plastic & Metal
* Large Hood 46-1/4" Length Around Rim * 14-3/4" Diameter
* Top has 7-1/2" X 7-1/2" Square Design on Top
* Hood Band Fastener: Screw
** Includes: Counterbalance Neck Spring, Neck, Outer Hood (Black), Inner Hood and Hood Band.

This Hood Assembly will replace entire hood assemby for Dryer Models # B810, # B700, # B900, # 9500A, # 9501A, # B900B and # B870

See Parts Schematic Here

by Belvedere

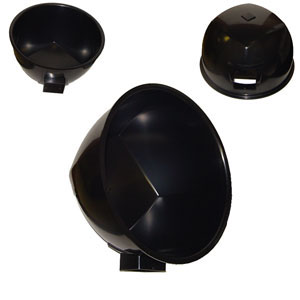

For NEWER Model # B900B Mega Belvedere Dryer
* Color: Black
* Material: PLASTIC
* Large Hood 46-1/4" Length Around Rim * 14-3/4" Diameter
* Top has 7-1/2" X 7-1/2" Square Design on Top

See Parts Schematic Here

by Belvedere

For NEWER Model # B900B Mega Belvedere Dryer

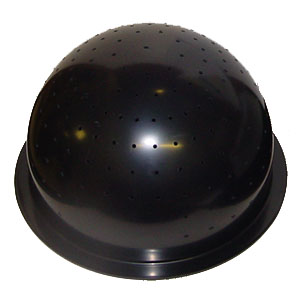

* Inner Hood with Holes
* Color: Black
* Material: PLASTIC
* Large Hood 46-1/4" Length Around Rim * 14-3/4" Diameter

See Parts Schematic Here

by Belvedere

* This the Band that Holds the Inner and Outer Hood together
* Fits Belvedere Mega Dryer Model # B900B

See Parts Schematic Here

by Belvedere

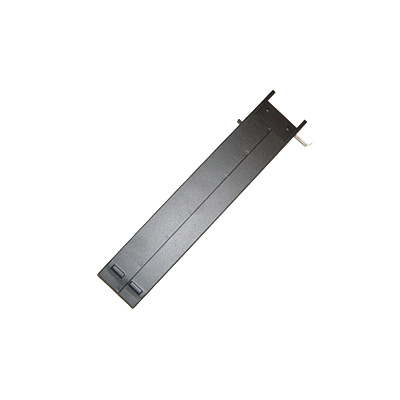

* This is the part between the Outer HOOD and the STACK
* Fits: Dryer Model #B810, B700, # B900, # 9500A, #9501A and Mega Dryer Model # B900B

See Parts Schematic Here

by Belvedere

Arbor Screws for Curved Neck Duct
* This is Two Screws ONLY
* Fits: Dryer Model #B810, B700, # B900, # 9500A, #9501A and Mega Dryer Model # B900B

See Parts Schematic Here

by Belvedere

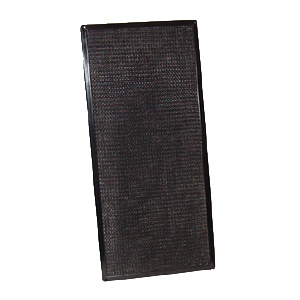

This Filter Fits in the Back of the Dryer

 * Over All Dimensions 22-1/4" Long X 10-1/4" Wide
* Fits: Old Helen Curtis, Zotos, Central Beauty Equip., and Before
* Fits: 1994 and before Belvedere Dryers like model # 9500A Avant Garde,
# 9501A Avant Garde Plus Dryers and Some Brentwood dryers
* Some Filters have plastic frame some have metal frame

by Belvedere

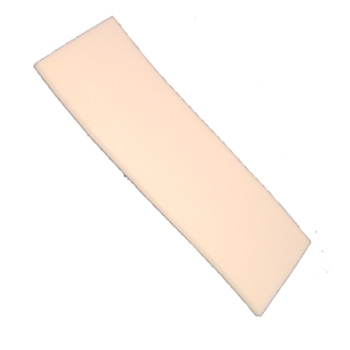

* Filter Dimension 2.75" x 4.75" x .5"
* Small foam filter fits under grill on top of dryer next to stack
* Fits: Belvedere #B900 Mega, B700 Real Hot & B810 Dryers

This Filter will also fit the Realistic Futura Salon Hair Dryer (2.5" x 4.5" x .5")
but may need to be cut down to fit. (may use house hold scissors to cut filter)

See Parts Schematic Here

by Belvedere

* Air Inlet Cover Size: 2.75" x 4.75"
* This is the grill on top of dryer beside of stack
* Fits: Belvedere #B900 Mega, B700 Real Hot & B810 Dryers

See Parts Schematic Here

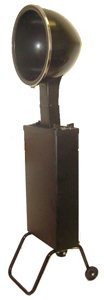

Hair dryer with extra large black hood
* Five position heat control
* 60-minute timer
* Dust filter.
* Textured BLACK Cabinet finish.
* BLACK HOOD
* HOOD DIMENSION 12" INSIDE 7-1/2" DEEP
* UL/CUL Listed
* 120 volts, 10 amps., 1030 watts.
* CABINET SIZE: 12" Wide X 5-1/4" Deep X 22" High
* Shipping Weight: 30 lb
* Item can Only be shipped on UPS Ground
** Currently, item can be shipped only within the 48 States.
*** Wheel Assembly Not Included

Options:
Dryer Cart * See Item # 926410170099

"Dryer NOT Included"

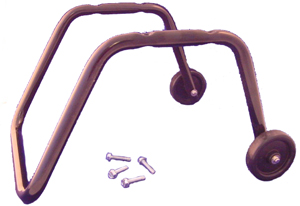

Belvedere Dryer Cart
DRYER CART with Wheels
Fastens on to bottom of dryer with 4 bolts included
Two wheel cart
Black tubular frame raises dryer to operating height. Wheels for positioning with various chairs.

Fits: Belvedere 900 series Salon Dryer ONLY!

by Belvedere



Filter Dimension 5.25" x 15.25" x 3/8"
Fits in NECK of DRYER
Material: Foam
Color:  Beige
Fits: Belvedere #810 Dryer made around 1985

Curling Irons

Brush Irons

Crimpers & Flat Irons

Develop 10 Nail Treatment & Nourishment

Tanning Lotions

FootBaths

  Home:  Index:  Parts:  Belvedere Products

Phone: 1-800-643-0333

  E-mail

    If you don't purchase online then Fax or Mail the No Risk Order Form

  Wholesale Login

Copyright © 2012 Cache Beauty Supply, Inc. All Rights Reserved

  Shipping Policy
